HOME    Smart TV    32-inch random screen (best friend machine)
20

32-inch random screen (best friend machine)

Model:HY-Q32M

32-inch random screen (best friend machine)

ProductsName

32-inch random screen (best friend machine)

Display Size

32inches

Product Model

HY-Q32M

Displayscreencharacteristics

Display Type

32 inch LCD glass a-Si TFT-LCD

Display Area

697.7(H) x 392.3(V),mm

resolution

1920(horizontal) x1080(vertical)

Color (max)

16.7M (6-bit Hi-FRC)

brightness

350cd/m2

Pitch

0.3638mm

viewing angle (degree)

89/89/89/89

Touch Type

10-point capacitive touch

Android system parameters

CPU

Quad-core Cortex-A73 Quad-core Cortex-A53

Memory

6GLPDDR4

storage

128G EMMC

GPU

Mali-G72 MP3 700MHz

Multimedia

support HD video and picture playback: support LVDS 1920x 1080,EDP-1920x1080,

MIPI-1200x1920,HDMI-2K Display Output

Visionfrequency format

Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP, etc

Pictureformat

Support BMP,JPEG,PNG,GIF, etc

operating system

Android12.0

RTC Realtime clock

support

timingSwitch on/off

support

Networksupport

Ethernet, WiFi,Bluetooth

WiFi

2.4G/5.8Gwireless network

Blueteeth.

4.2

soundbox

built-in18 Euro 5W high quality Horn

systemUpgrade

support network upgrade, computer upgrade

Input/OutputPort

RJ45* 1/HDMI* 1/TYPE C*1 /USB3.0*1 /DC*1/Headphones*1

pre-installed software

Domestic:WeChat, shakesound,WPSOffice, beautyYan camera,KEEP FITNESS,electronicWhiteboard, Tencent Video, Tencent Conference, Cool Dog Music,NetEase Cloud Music, etc.

Abroad:Google Store,Google Voice Assistant,WhatsApp,facebook, Messenger,Instagram,Twitter,Youtube,tiktok etc.

Audio/Speaker Features

Horn type

built-in soundring

Horn maximum output power

8 Euros5tile

Audio Features

Balancing, Auto Volume Control, Inter-MM/Bilingual/Surround Sound, Fiber Mode, Equalizer

input voltage

AC 110-220V 50-60Hz

Overall power

Normal <100tile

power saving

<3W

Overall size

seeDimensional drawing

Accessories

32 inchHeart Screen (girlfriendsmachine)1Adapter1Bracket2.bearing bottomplate1Hexagon sheet metal hand3.Instruction 1Certificate 1

Photographlike a head.

optional12 million pixels, Type-Cconnectedmouth

Battery Capacity

Domestic:7800mAh,lithium iron phosphate battery with protection circuit

Abroad:6000mAh,lithium iron phosphate battery with protection circuit

mobile stand height adjustment

Lifttrip: 180mm

Horizontaldirection: 1230-1400mm;

verticaldirection: 1320-1480mm.

angle adjustment

rotation: 90 ° clockwise/90 ° counterclockwise,

pitchinclination: front/rear 30 °

casters

51 inch universal wheel

Switch Fingerindicator lamp

onshutdownblue, low batterybattery indicator flashes

bag

heavyforceCarton (is protected by Baolilong)

Usemode

floor type

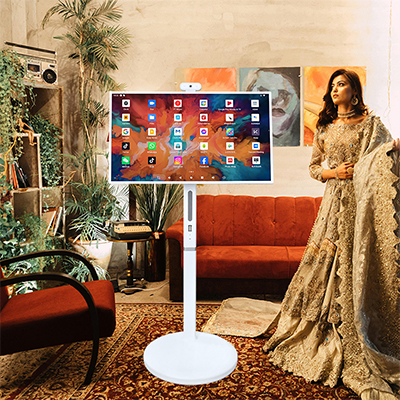

32-inch random screen (best friend machine)ReferencePicture(Model:HY-Q32M)

32-inch random screen (best friend machine)Dimensionsdiagram(Model:HY-Q32M):



                                       Horizontal dimension                                                                    verticalversion size

(The appearance drawing is for reference only, and the actual size is subject to the order)
